Price from

N/A

Power (hp)

24.1/7500

Max. Torque

23.0N·m/6000 r/min

Curb Weight (kg)

138

Tech Specs

  • Model Name

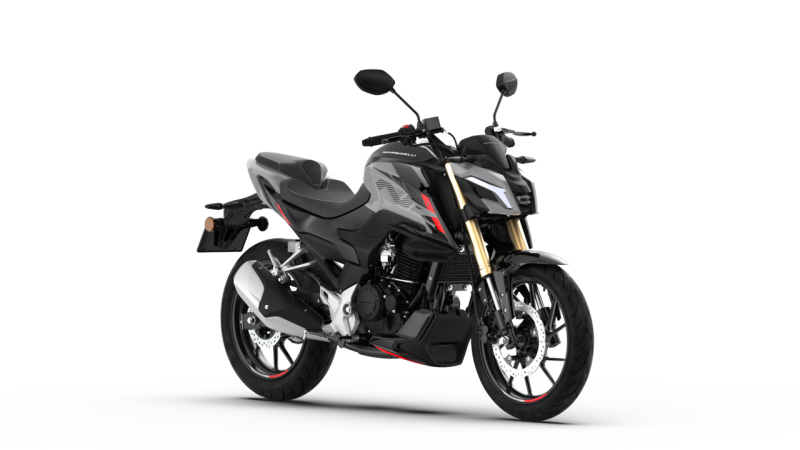

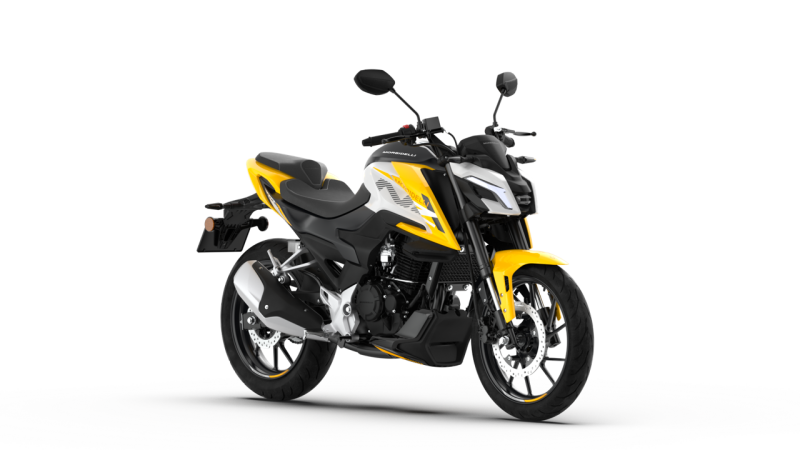

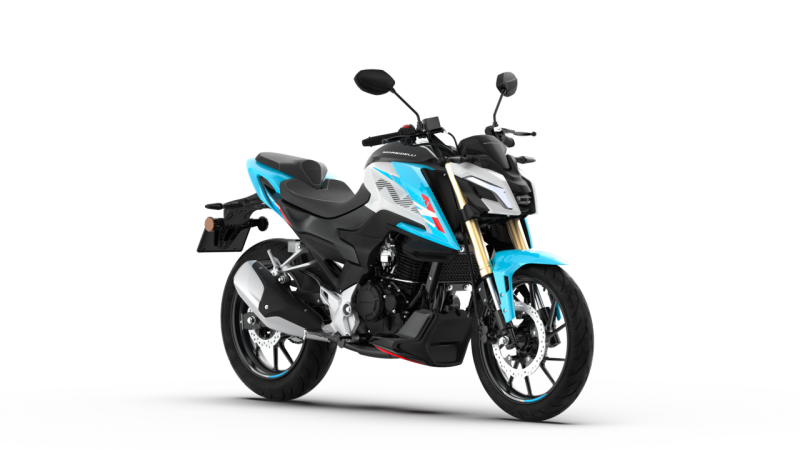

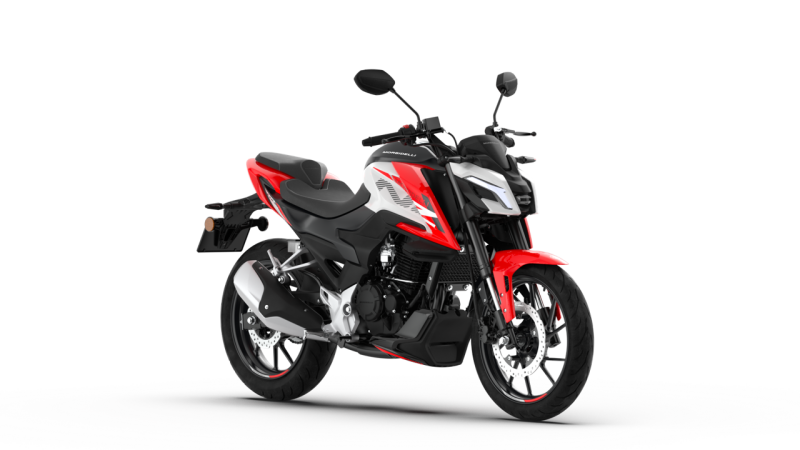

    Morbidelli NZ250

    Model Year

    2025

    Category

    Naked

  • Displacement (c.c)

    249.4

    Type

    1-cylinder / 4-stroke / 4-valve / DOHC

    Bore x Stroke

    71×63

    Power (hp/rpm)

    24.1/7500

    Max Torque

    23.0N·m/6000 r/min

    Compression ratio

    9.6:1

    Fuel system

    Carburetor

    Valve train

    DOHC

    Ignition system

    CDI

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling System

    Air-Cooled with oil radiator

  • Gear shifting type

    6-speed

    Transmission type

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Diamond

    Front Wheel

    Alloy

    Front Suspension

    37mm upside-down telescopic forks

    Front Suspension travel (mm)

    125

    Front Tyre

    110/70-17

    Rear Wheel

    Alloy

    Rear Suspension

    Shock-absorber, preload adjustable

    Rear Suspension travel (mm)

    25

    Rear Tyre

    140/70-17

    Front Brake

    Disc, 2-piston caliper

    Front brake diameter (mm)

    276

    Rear Brake

    Disc, 1-piston caliper

    Rear Brakes diameter (mm)

    220

  • Curb Weight (kg）

    138

    Seat height (mm)

    790

    Wheelbase

    1395

    Overall length (mm)

    2065

    Overall width (mm)

    750

    Overall height (mm)

    1095

    Ground clearance (mm)

    165

    Fuel Capacity (L)

    14

    Top speed (km/h)

    125

    Max Loadage (kg)

    150

    Battery

    12V, 8A/h

  • Dashboard type

    LCD

    Gear indicator

    Included

    USB charging port

    Included (USB + USB-C)

    Handle switch with illumination

    Included

  • Headlight

    LED projector + DLR

    Taillight

    LED

    Turn signal

    LED

    Hazard light

    Included
