Price from

N/A

Power (hp)

22.4/7500

Max. Torque

22.0N·m/6000 r/min

Curb Weight (kg)

154

Tech Specs

  • Model Name

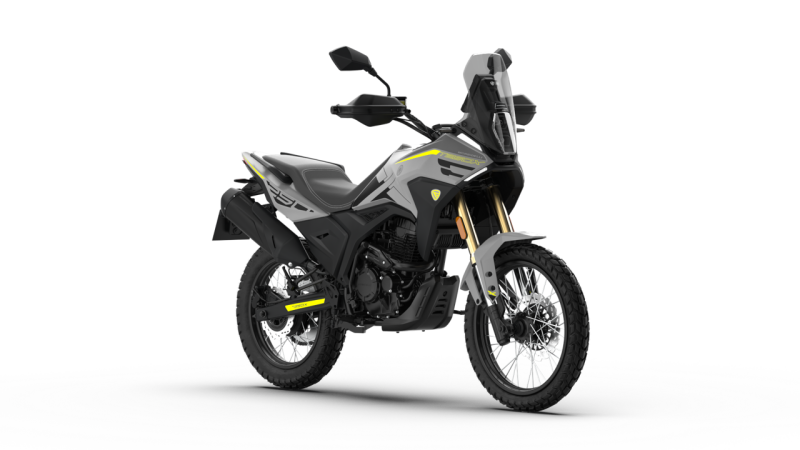

    Morbidelli T250X

    Model Year

    2025

    Category

    Trail

  • Displacement (c.c)

    249

    Type

    1-cylinder / 4-stroke / 4-valve / SOHC

    Bore x Stroke

    71.0×63.0

    Power (hp/rpm)

    22.4/7500

    Max Torque

    22.0N·m/6000 r/min

    Compression ratio

    9.7:1

    Fuel system

    Carburetor

    Valve train

    SOHC

    Ignition system

    CDI

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling System

    Air-Cooled

  • Gear shifting type

    6-speed

    Transmission type

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Double-cradle

    Front Wheel

    Spokes

    Front Suspension

    41mm upside-down telescopic forks

    Front Suspension travel (mm)

    177

    Front Tyre

    90/90-19

    Rear Wheel

    Spokes

    Rear Suspension

    Shock-absorber, preload adjustable

    Rear Suspension travel (mm)

    55

    Rear Tyre

    110/90-17

    Front Brake

    Disc, 2-piston caliper

    Front brake diameter (mm)

    265

    Rear Brake

    Disc, 2-piston caliper

    Rear Brakes diameter (mm)

    220

  • Curb Weight (kg)

    154

    Seat height (mm)

    820

    Wheelbase

    1340

    Overall length (mm)

    2060

    Overall width (mm)

    985

    Overall height (mm)

    1170

    Ground clearance (mm)

    220

    Fuel Capacity (L)

    11.7

    Top speed (km/h)

    115

    Max Loadage (kg)

    105

    Battery

    12V, 6.5Ah

  • Dashboard type

    Vertical LCD, Rally Inspired

    Bluetooth

    Included

    Gear indicator

    Included

    USB charging port

    Included

    Handle switch with illumination

    Included

  • Headlight

    X-Stack LEDS, Dual LED projector lenses for optimal visibility

    Taillight

    LED

    Turn signal

    LED

    Hazard light

    Included

    Automatic lighting system

    Included

  • ABS system

    Included, Dual-Channel
