Price from

$ 27,888

Power (hp)

46.94/8500

Max. Torque

45.0N·m/6750 r/min

Curb Weight (kg)

208

Tech Specs

  • Model Name

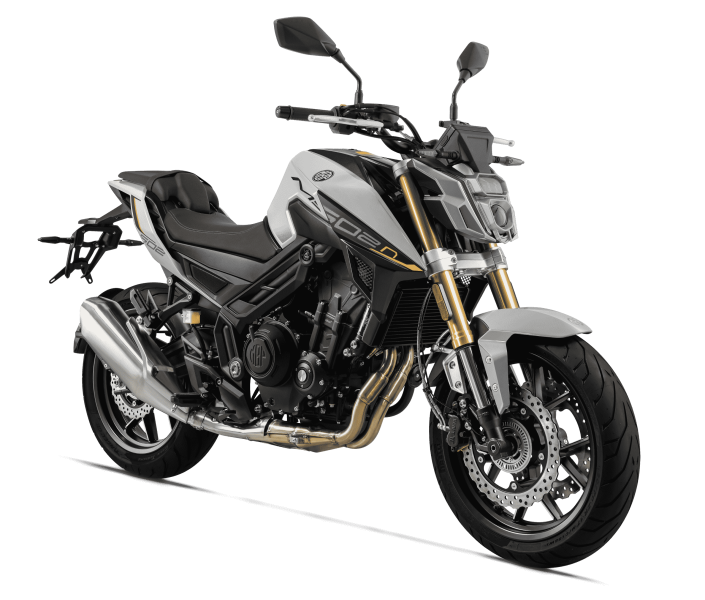

    Morbidelli M502N

    Model Year

    2022

    Category

    Naked

    Price From

    1st. Semester 2023

  • Displacement (c.c)

    486

    Type

    2-cylinder/ 4-stroke/ 8-valve

    Bore x Stroke

    68×67

    Power (kW/rpm)

    46.94/8500

    Max Torque

    45.0N·m/6750 r/min

    Compression ratio

    10.7:1

    Fuel system

    Bosch EFI

    Valve train

    DOHC

    Ignition system

    TCI

    Starter

    Electric

    Lubrication system

    Pressure splash lubrication

    Cooling System

    Liquid-cooled

  • Gear shifting type

    6-speed

    Transmission type

    Chain

    Clutch type

    Wet multi-plate

  • Frame

    Diamond

    Front Wheel

    Aluminum alloy

    Front Suspension

    Upside-down telescopic forks

    Front Suspension travel (mm)

    119.5

    Front Tyre

    Pirelli Angel GT 120/70 ZR17

    Rear Wheel

    Aluminum alloy

    Rear Suspension

    Pro-link Mono shock- absorber ,adjustable

    Rear Suspension travel (mm)

    55

    Rear Tyre

    GT 160/60 ZR17, Pirelli Angel

    Front Brake

    Disc with ABS system

    Front brake diameter (mm)

    300

    Rear Brake

    Disc with ABS system

    Rear Brakes diameter (mm)

    240

  • Curb Weight (kg）

    208

    Seat height (mm)

    790

    Wheelbase

    1420

    Overall length (mm)

    2145

    Overall width (mm)

    775

    Overall height (mm)

    1110

    Ground clearance (mm)

    165

    Fuel Capacity (L)

    17

    Top speed (km/h)

    160

    Max Loadage (kg)

    185

    Battery

    12V, 8Ah, maintenance free
